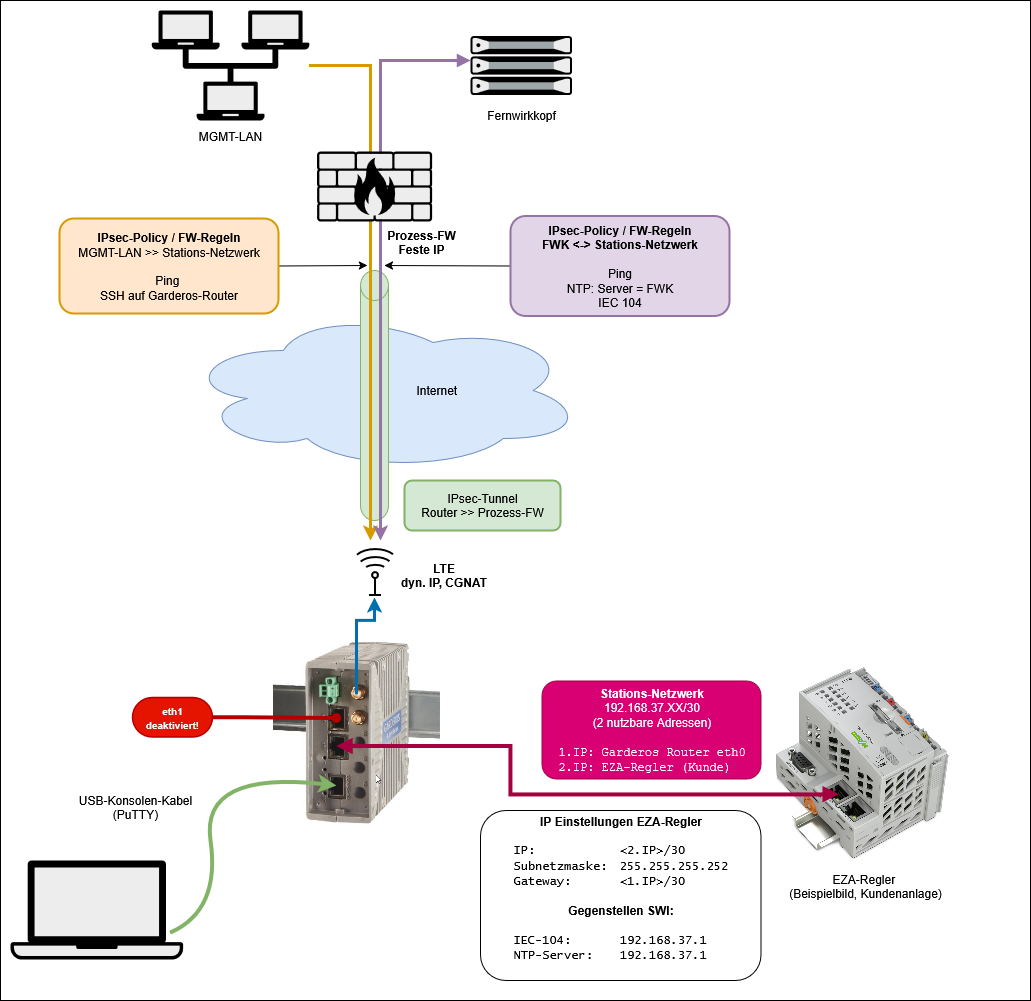

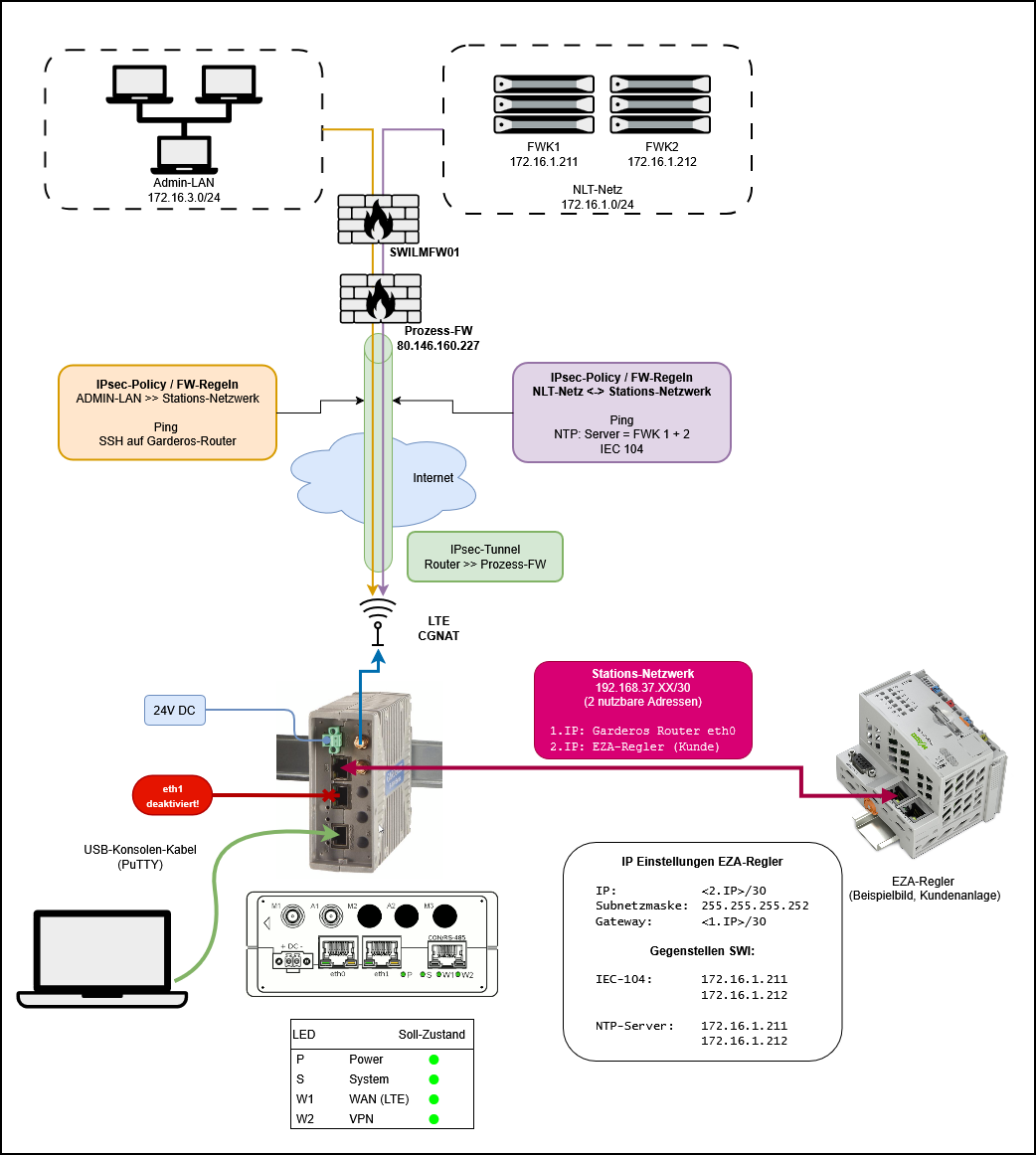

Netzwerk-Konfiguration

Ethernet-Schnittstelle

interface.eth.0.ip.static.0.ipv4=<Erste IP des Stations-Netzwerks/30>
interface.eth.0.name=eth0

Netzwerk-Dienste

service.ntp.server.0.name=de.pool.ntp.org
service.ssh.enable=true

WWAN Verbindung (LTE)

hardware.wwan.0.name=wwan0

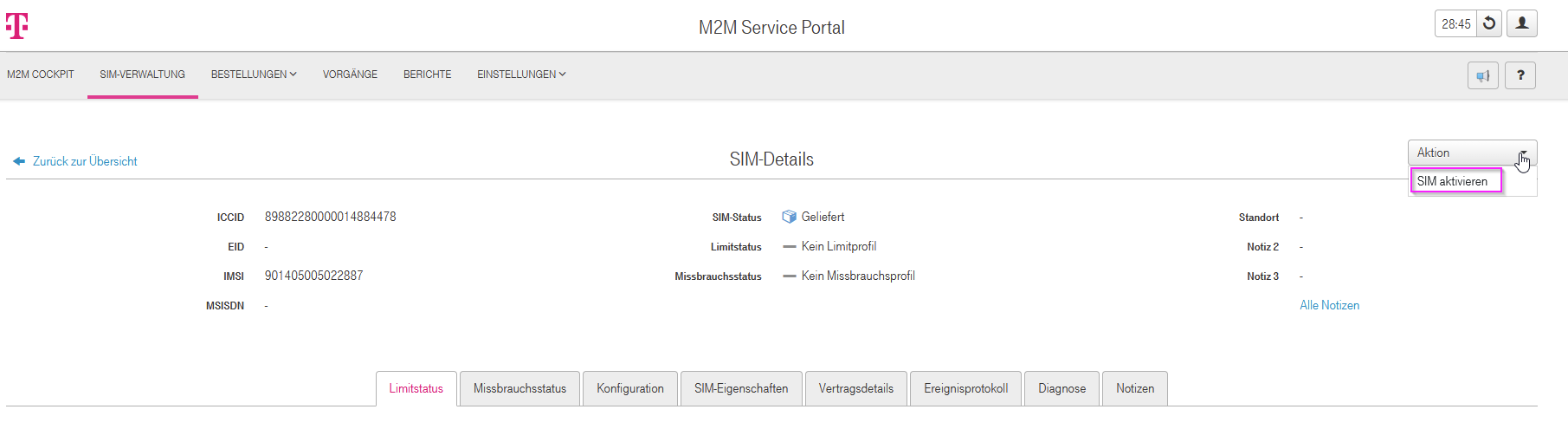

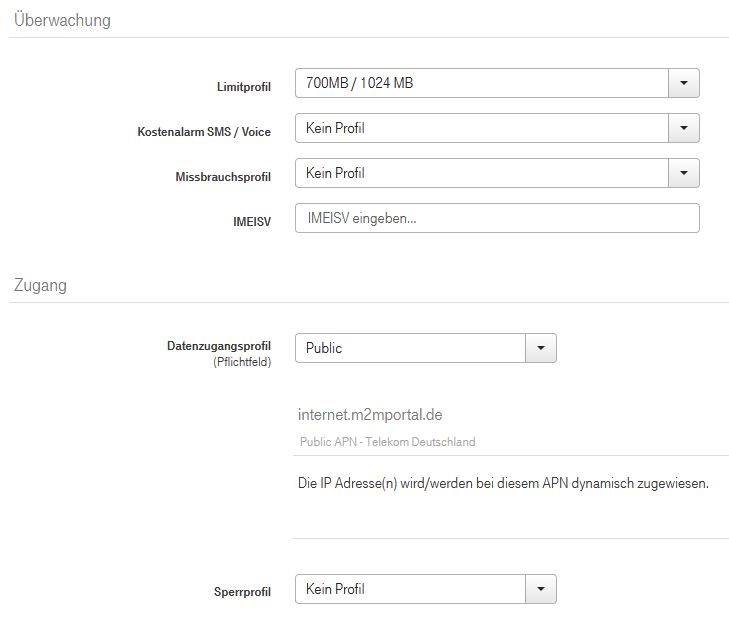

interface.wwan.0.apn=internet.m2mportal.de
interface.wwan.0.ip.auto.ipv4.enable=true
interface.wwan.0.name=wwan0-0

LTE Diagnose (Signalstärke):

show hardware wwan wwan0 information

router-ISE# show hardware wwan wwan0 information
Link quality (RSSI):  -70 dBm (excellent)
    Aux:              -91 dBm (good)
Ref power (RSRP):     -96 dBm (medium)
    Aux:              -119 dBm (poor)
Ref quality (RSRQ):   -6 dB (good)
Signal/Noise (SINR):  10 dB (medium)
Band:                 1800+ (B3 20MHz)
Use technology:       LTE
Current technology:   LTE
Network offers:       LTE
Modem supports:       LTE
PIN status:           disabled; up

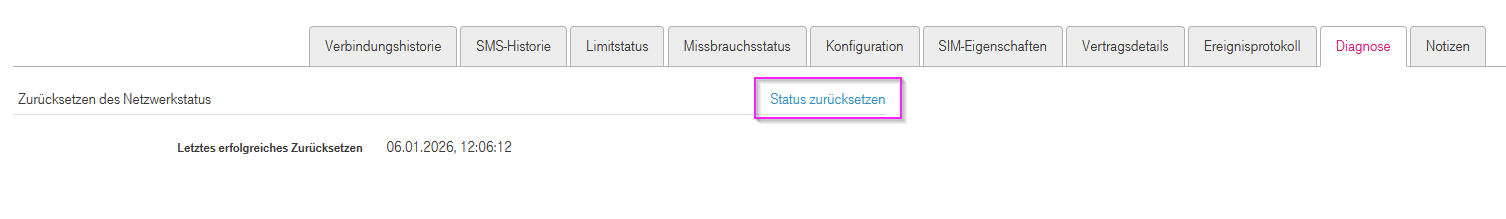

WWAN Diagnose (IP-Verbindung)

show interface wwan

router-ISE# show interface wwan
--------------------------------------------------------------------------------
 Description   Value                                         Reference
--------------------------------------------------------------------------------
 Name          wwan0-0
 Hardware      wwan0
 Description
 HW addr.      ca:29:98:72:3f:0a
 APN           internet.m2mportal.de
 Username      ------
 State         UP
 Up for        15m:38s
 Auto IPv4     10.39.50.243/32                               auto.ipv4

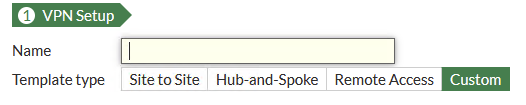

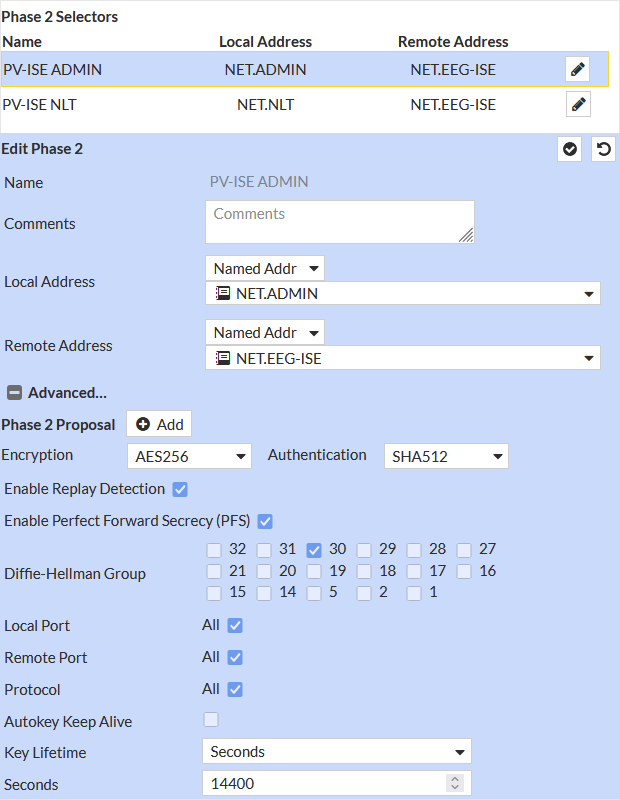

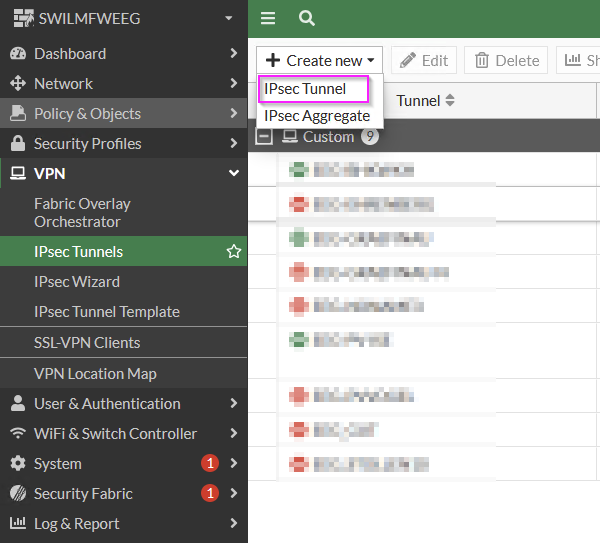

IPsec-Tunnel Konfiguration

system.name=router-ISE
system.secret={enc3}[...]
system.timezone=Europe/Berlin

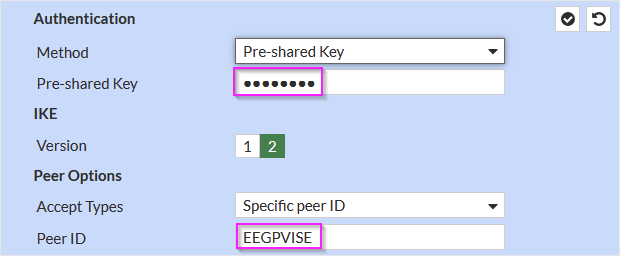

tunnel.ipsec.0.auth.psk.my-id=EEGUNNAME6
tunnel.ipsec.0.auth.psk.my-id-type=user-fqdn
tunnel.ipsec.0.auth.psk.peer-id=ILMEEG
tunnel.ipsec.0.auth.psk.peer-id-type=auto
tunnel.ipsec.0.auth.psk.psk={enc3}[...]
tunnel.ipsec.0.auto-start=true
tunnel.ipsec.0.compression=false
tunnel.ipsec.0.description=Tunnel to ILM Process Firewall

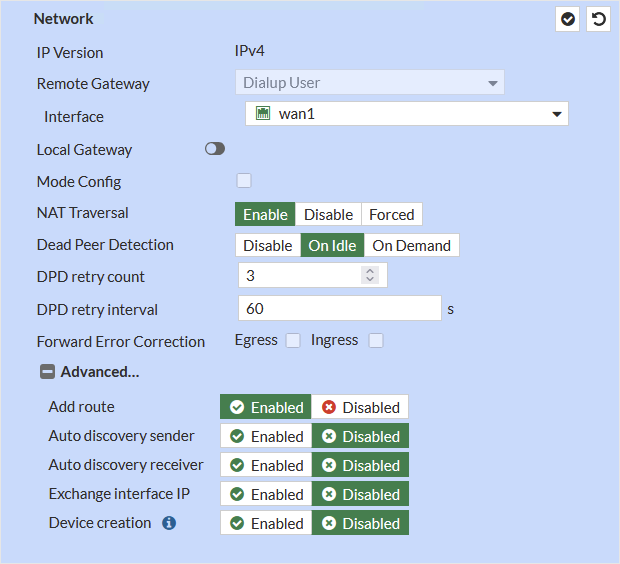

tunnel.ipsec.0.dpd.enable=true
tunnel.ipsec.0.dpd.interval=60
tunnel.ipsec.0.esp.0.encryption-algorithm=aes256
tunnel.ipsec.0.esp.0.hash-algorithm=sha256
tunnel.ipsec.0.esp-lifetime=43200
tunnel.ipsec.0.esp-pfs-group=modp2048

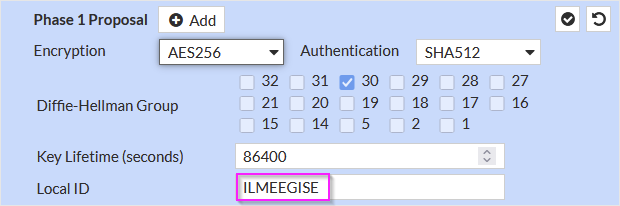

tunnel.ipsec.0.ike.0.dh-group=modp2048
tunnel.ipsec.0.ike.0.encryption-algorithm=aes256
tunnel.ipsec.0.ike.0.hash-algorithm=sha256
tunnel.ipsec.0.ike.0.prf-algorithm=sha256
tunnel.ipsec.0.ike-lifetime=86400
tunnel.ipsec.0.ike-version=ikev2
tunnel.ipsec.0.mode=aggressive
tunnel.ipsec.0.name=SWI
tunnel.ipsec.0.peer.name=<öffentliche IP der Prozess-Firewall>
tunnel.ipsec.0.policy.0.local-network=<Stations-Netzwerk/30>
tunnel.ipsec.0.policy.0.remote-network=<Fernwirkkopf-Netzwerk/30>
tunnel.ipsec.0.policy.1.local-network=<Stations-Netzwerk/30>
tunnel.ipsec.0.policy.1.remote-network=<Management-Netzwerk/29>
tunnel.ipsec.0.source-ip=wwan0-0:auto.ipv4
tunnel.ipsec.0.type=tunnel
user.account.0.level=15
user.account.0.name=root
user.account.0.password={sha256}[...]
user.enable.0.password={sha256}[...]

IPsec Diagnose

Tunnel-Zustand anzeigen:

Pro "Policy" wird ein Tunnel angezeigt, alle sollten Status "UP" haben:

router-ISE# show tunnel
--------------------------------------------------------------------------------------------------------
IPsec tunnels:
--------------------------------------------------------------------------------------------------------
                                               Source <-> Peer
 State                               Local network ========= Remote network
--------------------------------------------------------------------------------------------------------
SWI
                                         10.39.50.243 <-> 80.146.160.227
 UP                               192.168.37.84/30 ========= 192.168.37.0/30
                                         10.39.50.243 <-> 80.146.160.227
 UP                               192.168.37.84/30 ========= 192.168.36.216/29

Zur Fehlersuche Logging aktivieren
Am besten nur mit "do commit" bestätigen, nicht in startup-config schreiben!:

system.logging.0.component=net.ipsec
system.logging.0.level=debug

Logbuffer ausgeben:

show logbuffer

Ereignisse sofort im Terminal anzeigen / beenden:

terminal monitor enable
terminal monitor disable

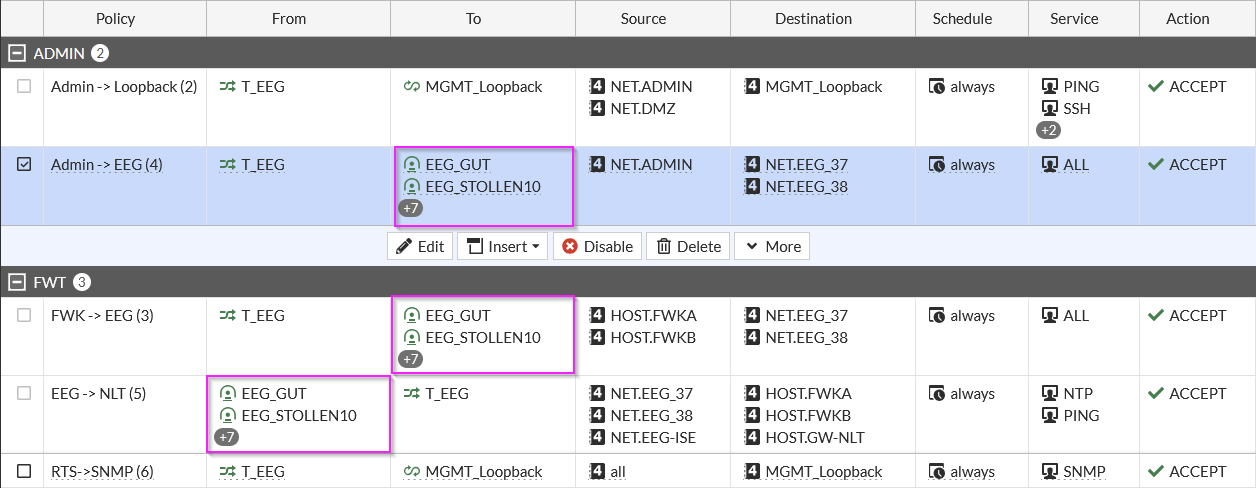

ACL (Firewall-Regeln)

acl.ipv4.forward.0.action=DROP
acl.ipv4.forward.0.connection.0.state=invalid
acl.ipv4.forward.0.description=drop invalid packets

acl.ipv4.forward.10.action=ACCEPT
acl.ipv4.forward.10.connection.0.state=established
acl.ipv4.forward.10.connection.1.state=related
acl.ipv4.forward.10.description=allow established and related

acl.ipv4.forward.20.action=ACCEPT
acl.ipv4.forward.20.bidirectional=true
acl.ipv4.forward.20.dest-network=<Stations-Netzwerk/30>
acl.ipv4.forward.20.protocol=icmp
acl.ipv4.forward.20.source-network=<Fernwirkkopf-Netzwerk/30>

acl.ipv4.forward.30.action=ACCEPT
acl.ipv4.forward.30.description=NTP Verbindung zum FWK
acl.ipv4.forward.30.dest-network=<Fernwirkkopf-Netzwerk/30>
acl.ipv4.forward.30.dest-ports=123
acl.ipv4.forward.30.protocol=udp
acl.ipv4.forward.30.source-network=<Stations-Netzwerk/30>

acl.ipv4.forward.40.action=ACCEPT
acl.ipv4.forward.40.description=Allow 104 protocol
acl.ipv4.forward.40.dest-network=<Fernwirkkopf-Netzwerk/30>
acl.ipv4.forward.40.dest-ports=2404
acl.ipv4.forward.40.protocol=tcp
acl.ipv4.forward.40.source-network=<Stations-Netzwerk/30>

acl.ipv4.forward.41.action=ACCEPT
acl.ipv4.forward.41.dest-network=<Stations-Netzwerk/30>
acl.ipv4.forward.41.dest-ports=2404
acl.ipv4.forward.41.protocol=tcp
acl.ipv4.forward.41.source-network=<Fernwirkkopf-Netzwerk/30>

acl.ipv4.forward.100.action=DROP
acl.ipv4.forward.100.description=last rule, drop everything else

acl.ipv4.input.0.action=ACCEPT
acl.ipv4.input.0.connection.0.state=established
acl.ipv4.input.0.connection.1.state=related

acl.ipv4.input.10.action=ACCEPT
acl.ipv4.input.10.description=Allow ICMP
acl.ipv4.input.10.protocol=icmp

acl.ipv4.input.20.action=ACCEPT
acl.ipv4.input.20.description=Allow SSH
acl.ipv4.input.20.dest-ports=22
acl.ipv4.input.20.protocol=tcp
acl.ipv4.input.20.source-network=<Management-Netzwerk/29>

acl.ipv4.input.100.action=DROP
acl.ipv4.input.100.description=Drop everything else

Ping-Diagnose

Beim Ping die IP-Adresse von eth0 verwenden!

ping 192.168.37.1 "-I 192.168.37.85"
